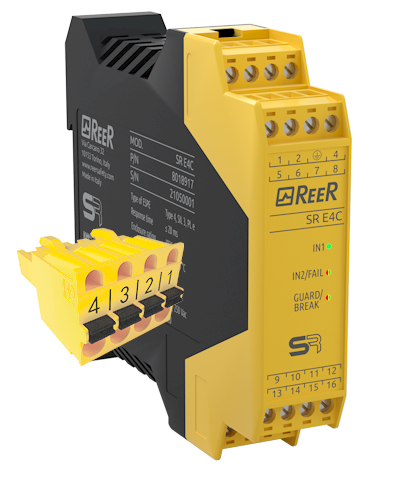

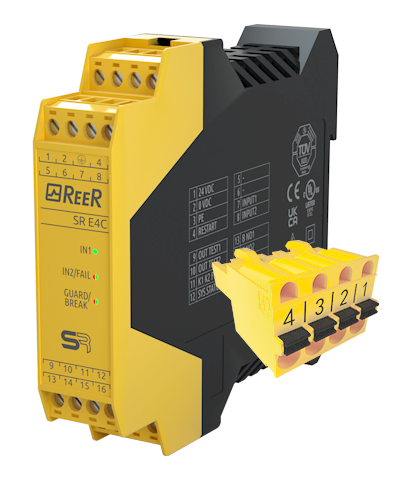

Safety interface for monitoring emergency stop buttons and safety switches
With 2 NO guided-contact safety relays
Manual monitored Start/Restart
EDM Feedback input for external contactors monitoring. With clamp terminal blocks
Safety Interface for emergency stop buttons and safety switches with manual monitored Start/Restart command. 2NO. Clamp Terminal Blocks
1330809
Safety interface for monitoring emergency stop buttons and safety switches
With 2 NO guided-contact safety relays
Manual monitored Start/Restart
EDM Feedback input for external contactors monitoring. With clamp terminal blocks
Safety level | PL e |
Safety level (SIL / PL) | PL e - Cat. 4 |
Operating temperature (°C) | -30 ... 55 |
Response time (ms) | ≤ 20 |
Signalling | LEDs indication for status and diagnostic: power supply, channel 1 and channel 2 |
Connections | Removable terminal blocks, clamp contacts |
MTTFD (ISO13849) years | The values depend on the type of use. Refer to the technical manual |
PFHd (IEC 61508) | The values depend on the type of use. Refer to the technical manual |
Safety devices to be connected | Emergency stop buttons and safety switches |
Start/Restart | Manual monitored |
Min. switching current at 24 VDC (mA) | 6 |
Safety relay outputs | 2 NO (6A at 250 VAC) |
Product class | C |
Power supply (VDC) | 24 ± 20% |
Dimensions HxWxD (mm) | 99 x 22,5 x 114,5 |
Degree of protection | IP2X |
Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
